Multi-way Signal Connector 8A Electrical Vehicle and battery like Connection
Features:
-
Secondary lock function
-
Cable range: 0.5~1.5mm2
-
Poka-yoke
-
HVIL
-
Touch-proof
-
360°shielding
Application:
- Motor controller
- Lithium battery, lead-acid battery
- Driving system
- charging system
Specifications:
- Rated current: 8A MAX
- Rated voltage: 500V DC
- Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
- Dielectric withstanding voltage:2000V AC
- Temperature Range: -40~+125 ℃
- IP Rating: IP67
Parameters:
| Rated Current: | 8A MAX |
| Rated Voltage: | 500V DC |
| Insulation Resistance: | 5000MΩ MIN(DRY)200MΩ MIN(RH 95%) |
| Dielectric Withstanding Voltage: | 2000V AC |
| Temperature Range: | -40~+125℃ |
| IP Rating: | IP67 |
| Application: | Motor controller, battery, driving system, charging system |

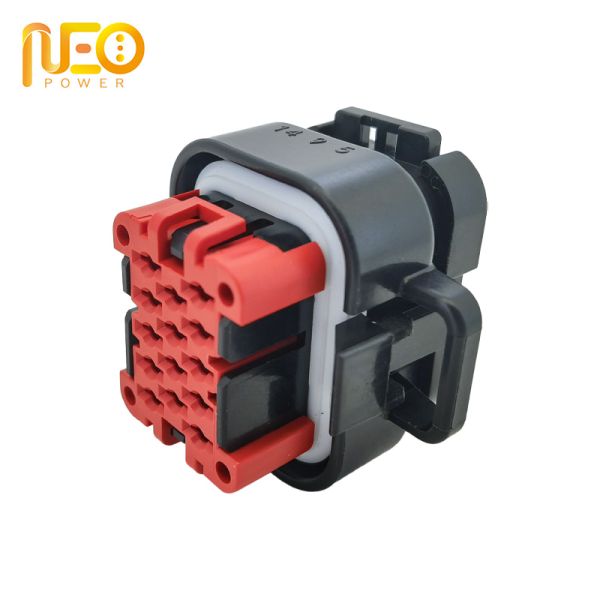

Product Pictures:
Drawings:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
